Project Year : 2021
Province : Istanbul , Türkiye
District : Beykoz
Neighborhood : Merkez
Block : 354
Plot : 17
Layout : 53

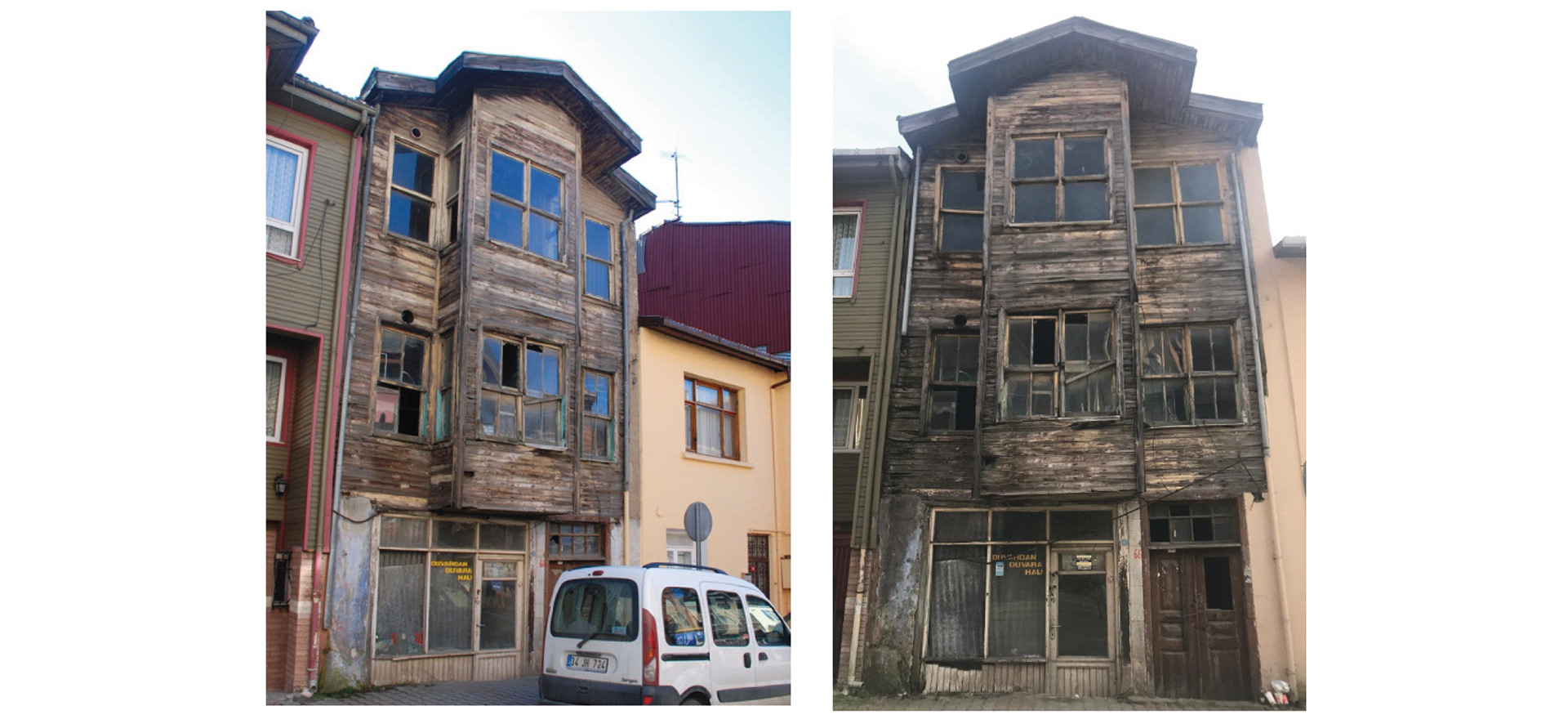

Current Status Photo
It is a two storey wooden house. The structure is damaged. Registration date is 19 April 1974. It is known to have been built at the end of the 19th century and the beginning of the 20th century.

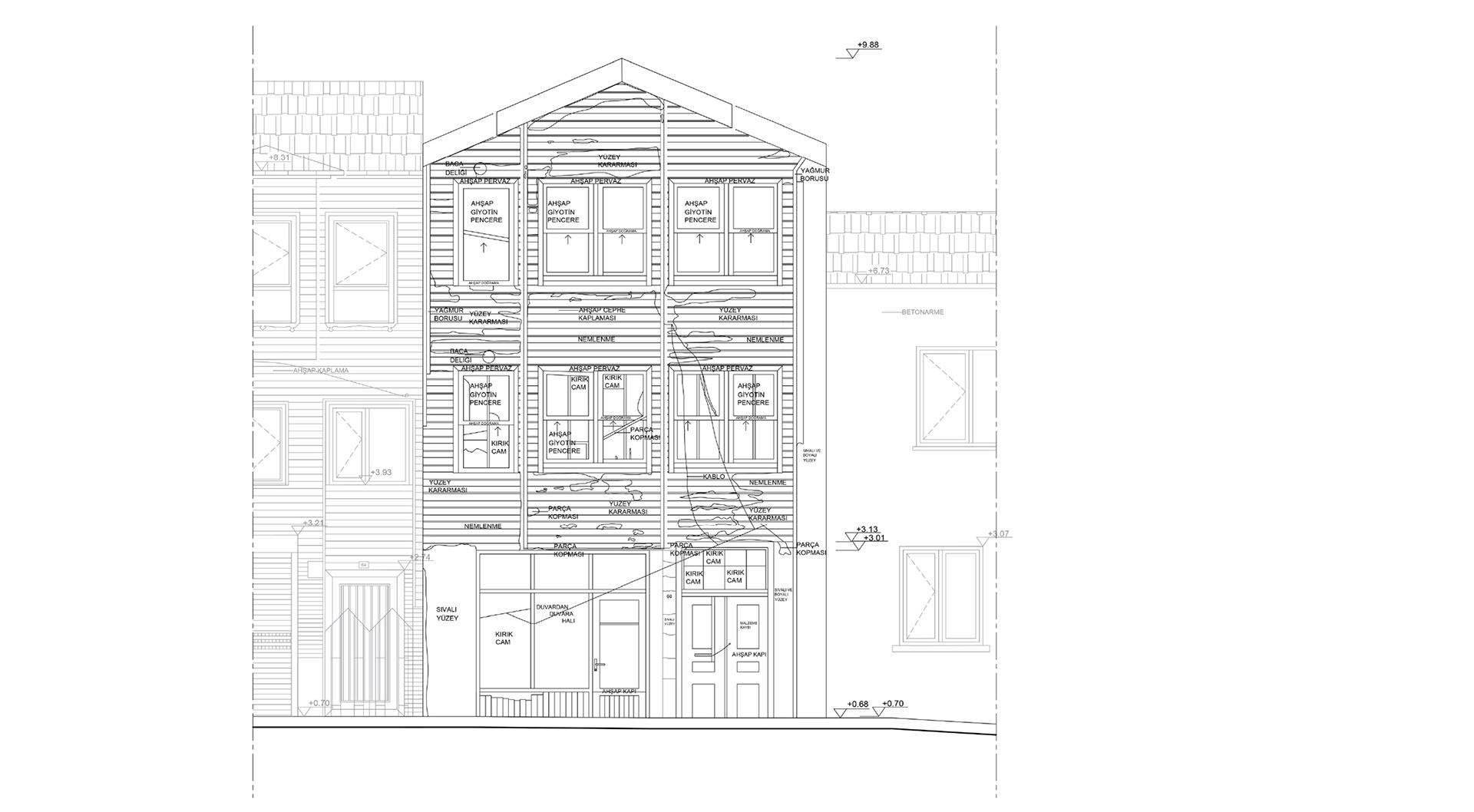

Measured Drawing

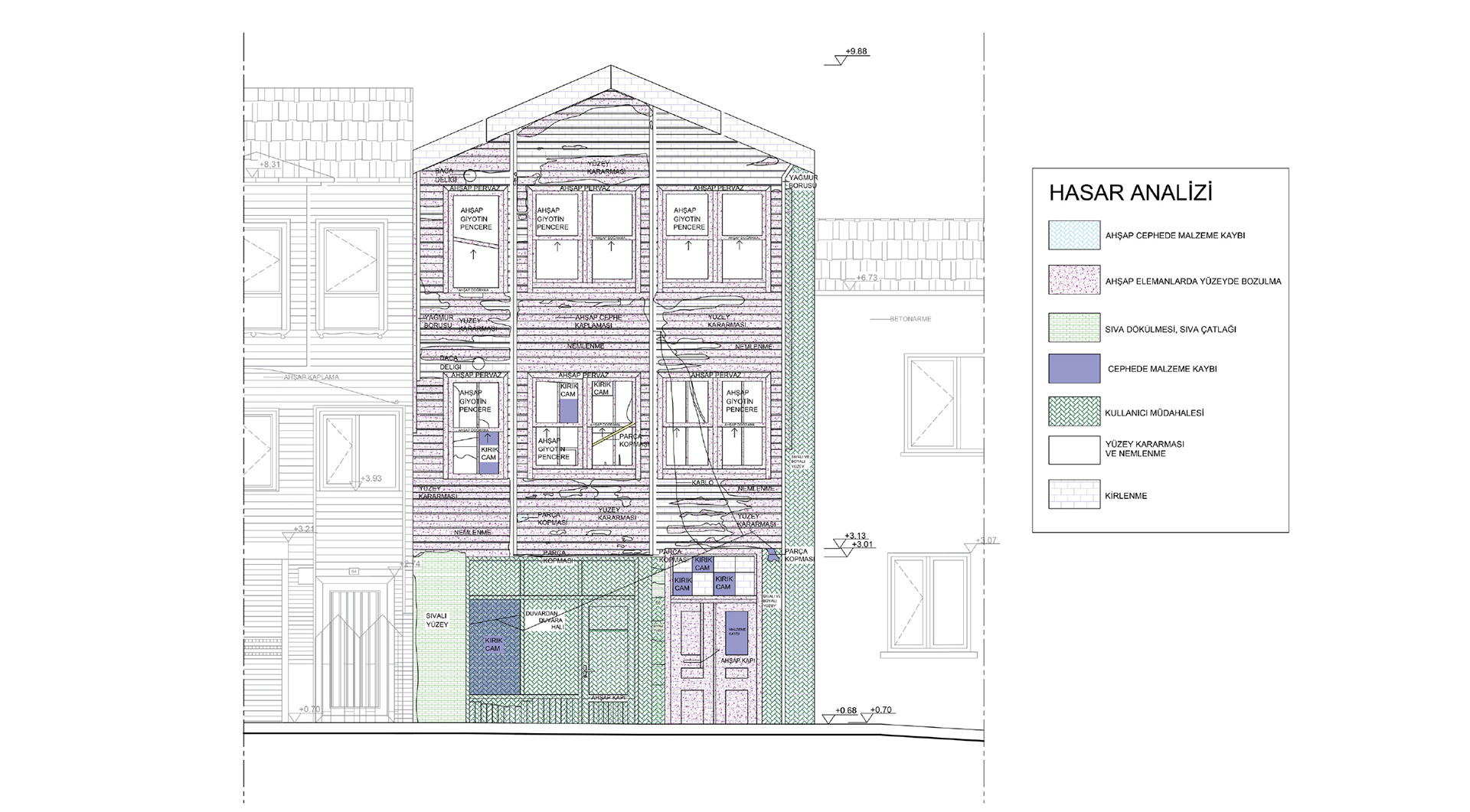

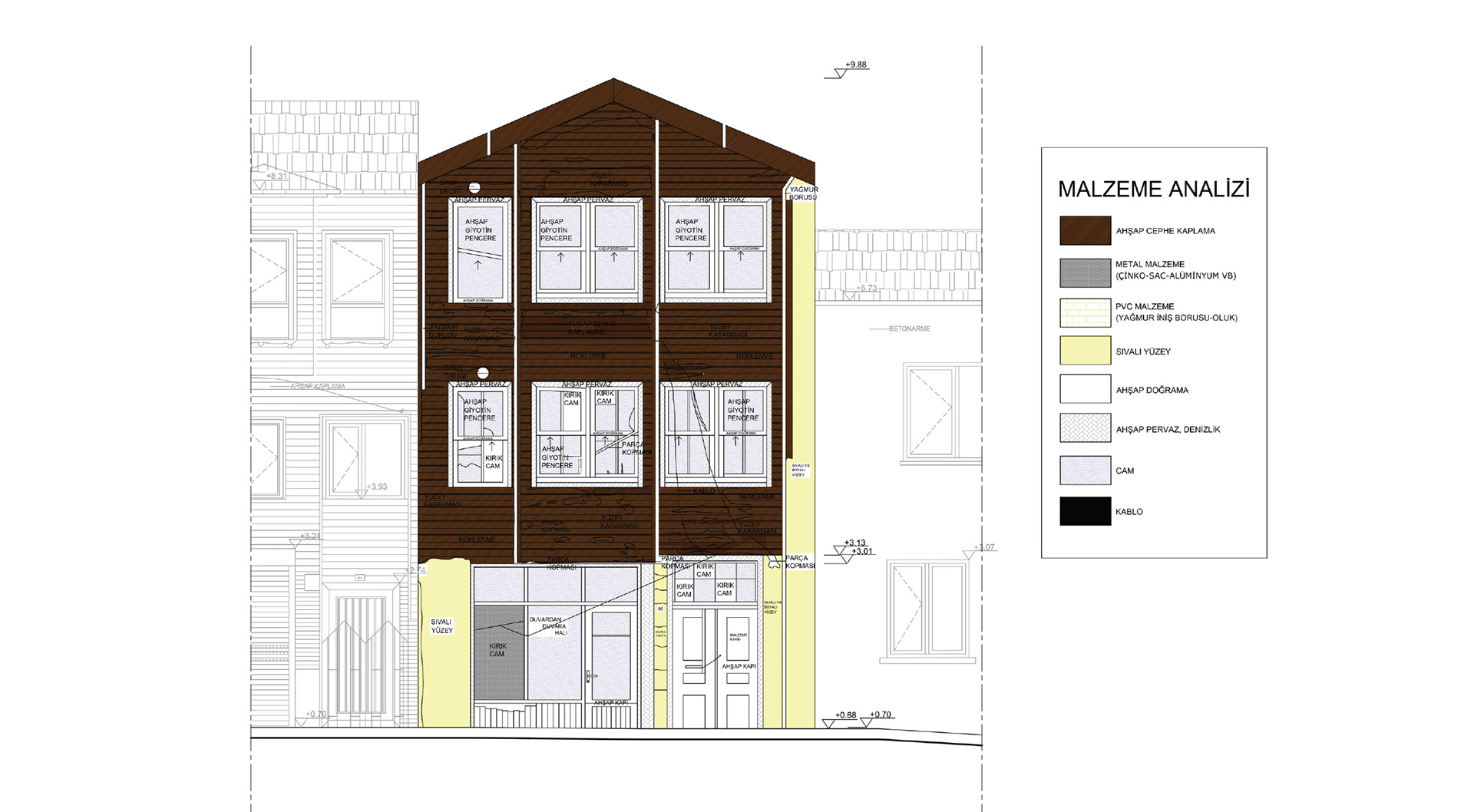

The structure is wooden frame. The exterior is plain and wood-clad. The corners of the bay window extending over two normal floors are accentuated by wooden sills. The windows are wooden guillotine and the edges are molded. The windows are very worn and have cracks. There is a skylight on the double-sided wooden door on the northern façade of the building. There is a fire wall on the west side. It is plastered and painted. The ground floor was used to fulfill the commercial function. Therefore, it contains large windows that are not suitable for the facade. Dirty and broken windows are available. The ground floor is plastered.
The ground floor was used to fulfill the commercial function. Therefore, it contains large windows that are not suitable for the facade. Dirty and broken windows are available. The ground floor is plastered. Wooden facade cladding external factors, humidity, etc. It's pretty worn out. Piece breaks are also available. There are two chimney holes in the building. There are also 2 rain downpipes in the building and they are broken. There are also cables on the structure. Its roof is wooden. The entrance of the building is made through the wooden door on the north façade. The wooden door is quite dirty. There are broken glass on the door.

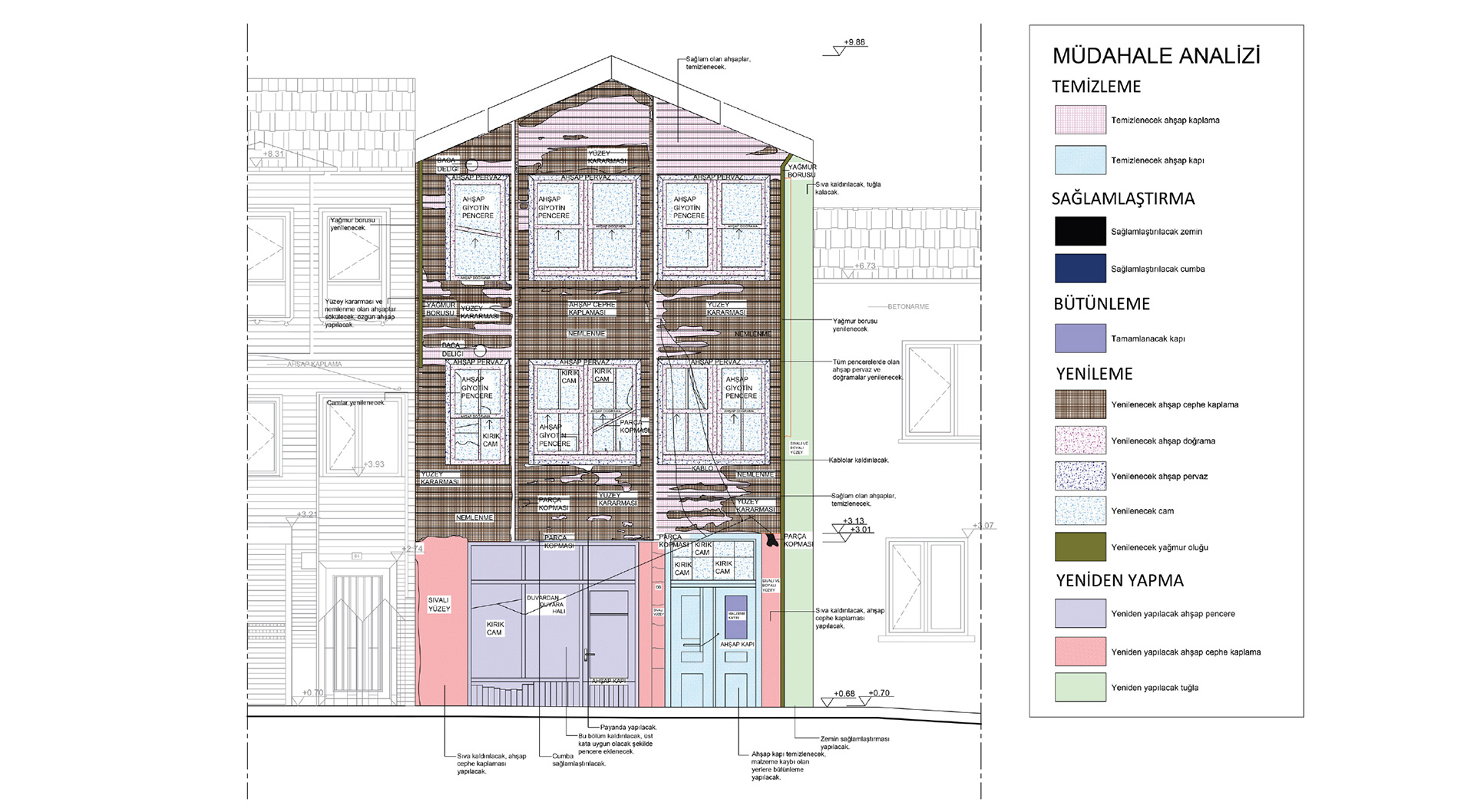

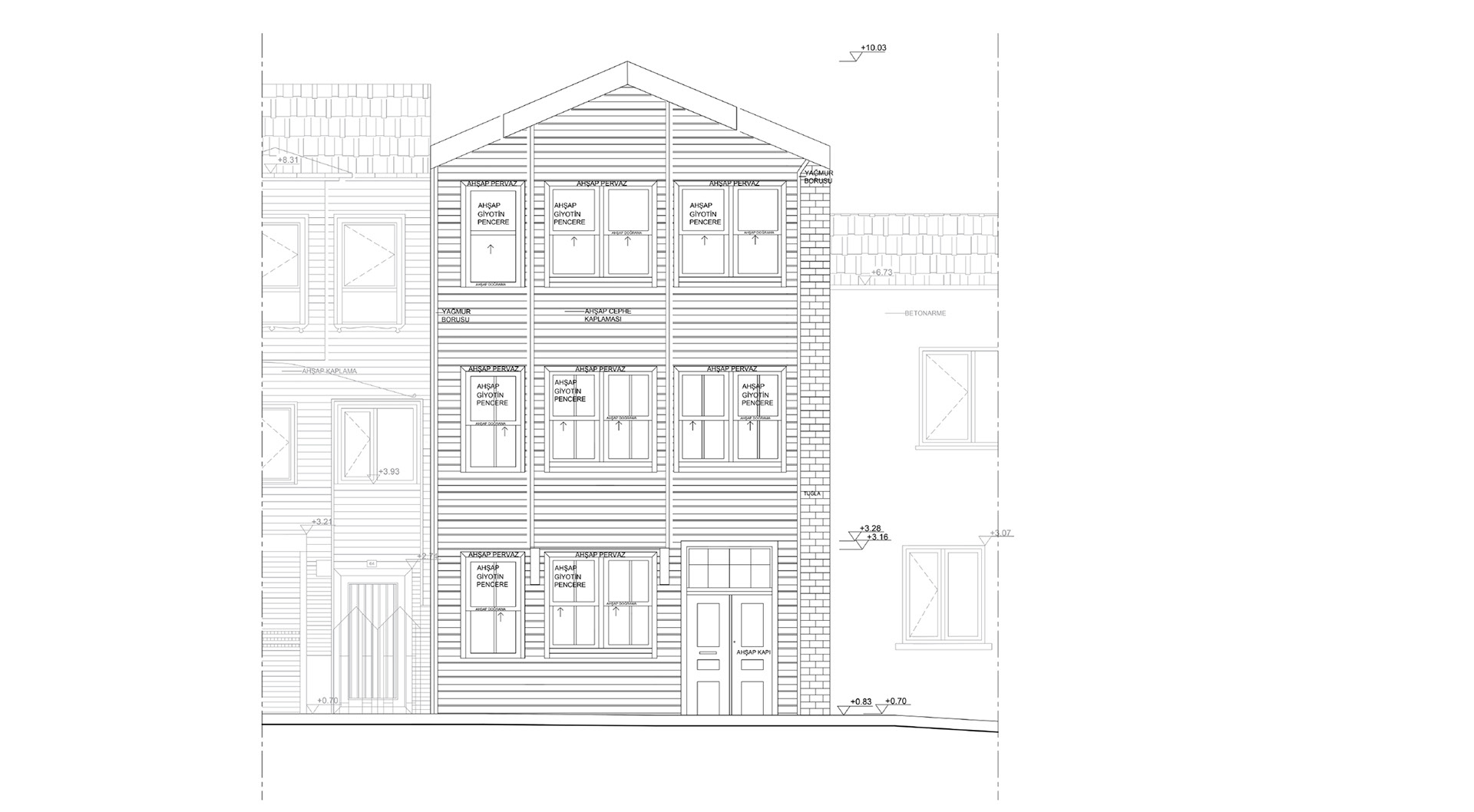

Restoration Drawing
Facade Decisions: The wooden facades of the wooden house are almost completely standing. It is recommended to remove and replace the wooden coatings that deteriorate due to external factors, and to clean the solid wooden coatings. The brick, which is the original state of the fire wall on the west façade of the house, is suggested. It is recommended to renew the broken rain gutters. It is suggested that the double-winged wooden door on the northern façade of the building should be renewed and the missing parts should be completed. Most of the glass on the façade is broken and needs to be renewed. It is recommended to replace the moldings and joinery that are highly damaged.
